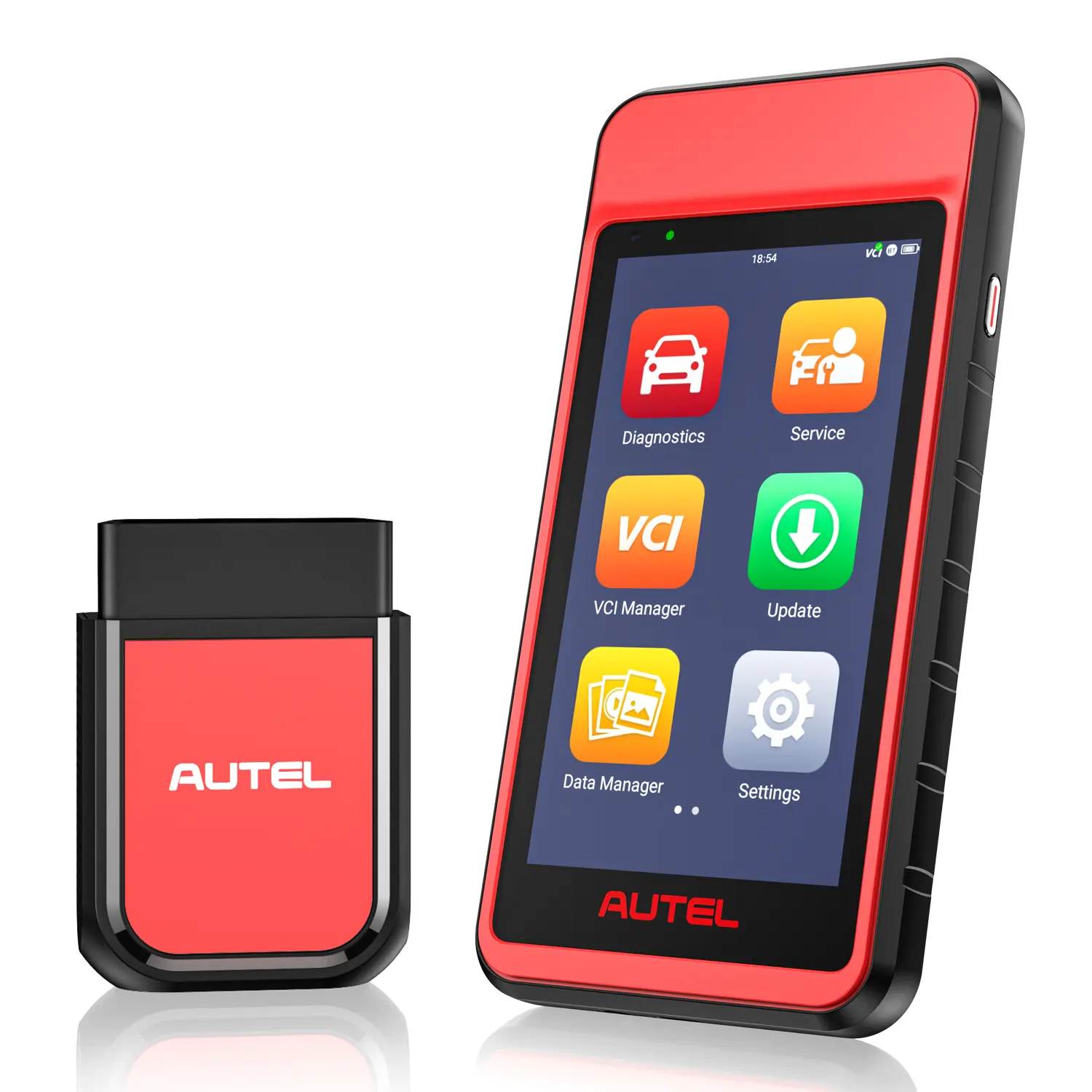

Autel MaxiDiag MD909 Pro

The MaxiDiag MD909 Pro is built to take your diagnostic experience to a whole new level. All systems scanner and service table.Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD909 Pro can access all available modules for the best diagnosis operations.

Enhanced All System Diagnostics and Service Functions

• MD909 Pro supports Extensive and current year vehicle coverage for U.S., Asian, and European vehicle makes, access to all modules in all systems
• Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data
• Support 11 service functions - Autel MD909 Pro supports OIL RESET, BREAK BLEEDING, INJECTOR, SAS, THROTTLE, EPB, BMS, TPMS, DPF, AFS Headlamp, A/F
• Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function

Outstanding Hardware, Faster Operation

• Autel MD909 Pro is equipped with 5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface
• 5,000mAh battery, deliver long battery-life
• Bluetooth connectivity of VCI, more convenient in handheld operation scenarios

Advanced, expandable & cost-effective handheld system for DIY automotive maintenance sector

• Autel MaxiDiag MD909 Pro Supports CAN FD communication protocol, compatible with advanced automotive systems
• Access automakers security gateways, such as FCA, SFD, etc.*
• Free lifetime OTA software updates, cost-effective handheld solution
• Expandable battery test functions, requires optional MaxiBAS BT506 purchase

Autel MaxiDiag MD909 Pro Specification List

Item	Description	MD909 Pro
Hardware	VCI	V150 Lite
	System	Android 9
	Battery	5000mAh
	Storage	64G
	Screen	5.5-inch
Function	Vehicle Coverage	Current year vehicle of Asia, Europe, America, China
	System Coverage	All
	Read/ Erase Code	√
	Live Data	√
	Security Gateway	FCA, SFD, etc.
Service	OIL RESET	√
	BREAK BLEEDING	√
	INJECTOR	√
	SAS	√
	THROTTLE	√
	EPB	√
	BMS	√
	TPMS	√
	DPF	√
	AFS Headlamp	√
	A/F	√
Communication Protocol	CAN FD	√
Extension	Battery Test（purchase BT506）	√
Software	FREE Lifetime Software	lifetime of tool
